Swiss Type CNC Head-Sliding Lathe Tool

Swiss Type CNC Head-Sliding Lathe Tool/Left Hand Right Cutting Part Off
PDF SPEC Back Lists

Left Hand Right Cutting Part Off

Model:

Left Hand Right Cutting Part Off

Features/Suit:

44.***R 443.***R

Category:

All >> Swiss Type CNC Head-Sliding Lathe Tool >> External Turning Tools

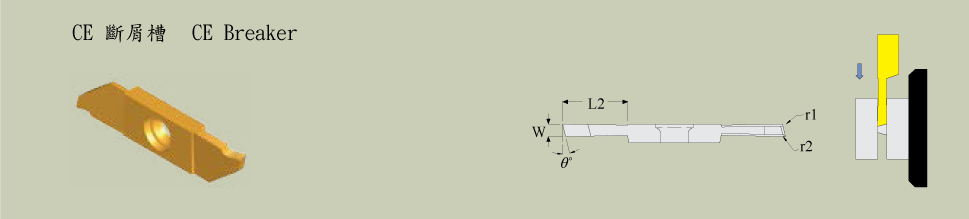

型 號 EDP NO. W θْ r1 r2 L2 X21 NC02 HC83 適用刀架 HOLDER NO.
無"●"標示者為訂製品。Without "●" marking means custom products.
有"●"標示者為在庫品。With "●" marking means items in stock.

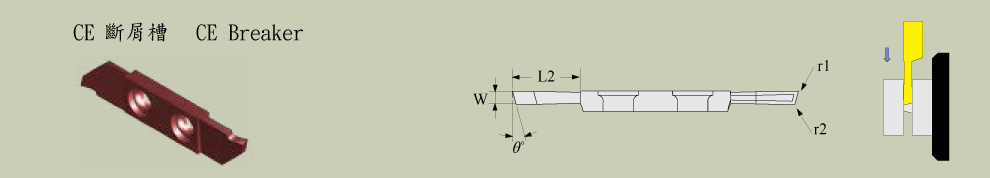

44.6310R-00 CE 1.0 15° 0.0 0.0 5 ● ●   CS789L****-63
44.6315R-00 CE 1.5 15° 0.0 0.0 8.5 ● ●   CS789L****-63
44.6315R-005 CE 1.5 15° 0.05 0.05 8.5 ● ●   CS789L****-63
44.6315-01R CE 1.5 15° 0.1 0.1 8.5 ● ●   CS789L****-63
44.6320-00R CE 2.0 15° 0.0 0.0 8.5 ● ●   CS789L****-63
44.6320-005R CE 2.0 15° 0.05 0.05 8.5 ● ●   CS789L****-63
44.6320-01R CE 2.0 15° 0.1 0.1 8.5 ● ●   CS789L****-63
44.6325-00R CE 2.5 15° 0.0 0.0 8.5 ● ●   CS789L****-63
44.6325-005R CE 2.5 15° 0.05 0.05 8.5 ● ●   CS789L****-63
44.6325-01R CE 2.5 15° 0.1 0.1 8.5 ● ●   CS789L****-63
44.8315-00R CE 1.5 15° 0.0 0.0 8.5 ● ●   CS668L****-83
44.8315-005R CE 1.5 15° 0.05 0.05 8.5 ● ●   CS668L****-83
44.8315-01R CE 1.5 15° 0.1 0.1 8.5 ● ●   CS668L****-83
44.8320-00R CE 2.0 15° 0.0 0.0 10.5 ● ●   CS668L****-83
44.8320-005R CE 2.0 15° 0.05 0.05 10.5 ● ●   CS668L****-83
44.8320-01R CE 2.0 15° 0.1 0.1 10.5 ● ●   CS668L****-83
44.8325-00R CE 2.5 15° 0.0 0.0 10.5 ● ●   CS668L****-83
44.8325-005R CE 2.5 15° 0.05 0.05 10.5 ● ●   CS668L****-83
44.8325-01R CE 2.5 15° 0.1 0.1 10.5 ● ●   CS668L****-83
44.8330-00R CE 3.0 15° 0.0 0.0 10.5 ● ●   CS668L****-83
44.8330-005R CE 3.0 15° 0.05 0.05 10.5 ● ●   CS668L****-83
44.8330-01R CE 3.0 15° 0.1 0.1 10.5 ● ●   CS668L****-83
44.6320-00R WCE 2.0 20° 0.1 0.0 8.5 ● ● ● CS789L****-63
44.6320-005R WCE 2.0 20° 0.05 0.05 8.5       CS789L****-63
44.6320-01R WCE 2.0 20° 0.1 0.1 8.5       CS789L****-63
44.8320-00R WCE 2.0 20° 0.1 0.0 10.5 ● ● ● CS668L****-83
44.8320-005R WCE 2.0 20° 0.05 0.05 10.5       CS668L****-83
44.8320-01R WCE 2.0 20° 0.1 0.1 10.5       CS668L****-83

型 號 EDP NO. W θْ r1 r2 L2 X21 NC02 HC83 適用刀架 HOLDER NO.
無"●"標示者為訂製品。Without "●" marking means custom products.
有"●"標示者為在庫品。With "●" marking means items in stock.

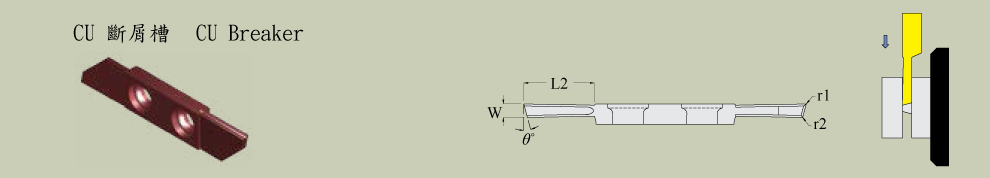

44.6315-00R CU 1.5 15° 0.0 0.0 8.5 ● ●   CS789L****-63
44.6315-005R CU 1.5 15° 0.05 0.05 8.5 ● ●   CS789L****-63
44.6315-01R CU 1.5 15° 0.1 0.1 8.5 ● ●   CS789L****-63
44.6320-00R CU 2.0 15° 0.0 0.0 8.5 ● ●   CS789L****-63
44.6320-005R CU 2.0 15° 0.05 0.05 8.5 ● ●   CS789L****-63
44.6320-01R CU 2.0 15° 0.1 0.1 8.5 ● ●   CS789L****-63
44.6325-00R CU 2.5 15° 0.0 0.0 8.5 ● ●   CS789L****-63
44.6325-005R CU 2.5 15° 0.05 0.05 8.5 ● ●   CS789L****-63
44.6325-01R CU 2.5 15° 0.1 0.1 8.5 ● ●   CS789L****-63
44.8315-00R CU 1.5 15° 0.0 0.0 8.5 ● ●   CS668L****-83
44.8315-005R CU 1.5 15° 0.05 0.05 8.5 ● ●   CS668L****-83
44.8315-01R CU 1.5 15° 0.1 0.1 8.5 ● ●   CS668L****-83
44.8320-00R CU 2.0 15° 0.0 0.0 10.5 ● ●   CS668L****-83
44.8320-005R CU 2.0 15° 0.05 0.05 10.5 ● ●   CS668L****-83
44.8320-01R CU 2.0 15° 0.1 0.1 10.5 ● ●   CS668L****-83
44.8325-00R CU 2.5 15° 0.0 0.0 10.5 ● ●   CS668L****-83
44.8325-005R CU 2.5 15° 0.05 0.05 10.5 ● ●   CS668L****-83
44.8325-01R CU 2.5 15° 0.1 0.1 10.5 ● ●   CS668L****-83
44.8330-00R CU 3.0 15° 0.0 0.0 10.5 ● ●   CS668L****-83
44.8330-005R CU 3.0 15° 0.05 0.05 10.5 ● ●   CS668L****-83
44.8330-01R CU 3.0 15° 0.1 0.1 10.5 ● ●   CS668L****-83
44.6320-00R WCU 2.0 20° 0.1 0.0 8.5 ● ● ● CS789L****-63
44.6320-005R WCU 2.0 20° 0.05 0.05 8.5       CS789L****-63
44.6320-01R WCU 2.0 20° 0.1 0.1 8.5       CS789L****-63
44.8320-00R WCU 2.0 20° 0.1 0.0 10.5 ● ● ● CS668L****-83
44.8320-005R WCU 2.0 205° 0.05 0.05 10.5       CS668L****-83
44.8320-01R WCU 2.0 205° 0.1 0.1 10.5       CS668L****-83

型 號 EDP NO. W θْ r1 r2 L2 X21 NC02 HC83 適用刀架 HOLDER NO.
無"●"標示者為訂製品。Without "●" marking means custom products.
有"●"標示者為在庫品。With "●" marking means items in stock.

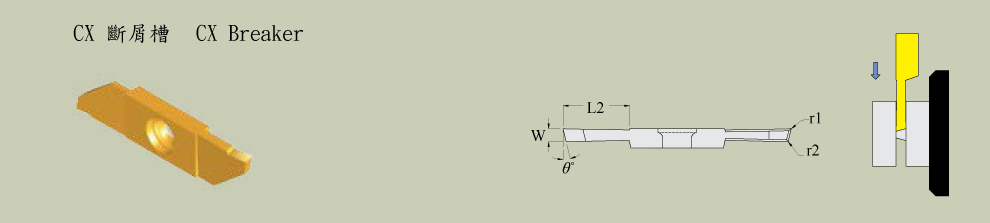

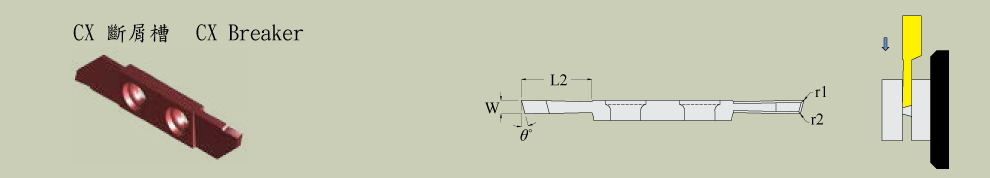

44.6310-00R CX 1.0 15° 0.0 0.0 5 ● ●   CS789L****-63
44.6315-00R CX 1.5 15° 0.0 0.0 8.5 ● ●   CS789L****-63
44.6315-005R CX 1.5 15° 0.05 0.05 8.5 ● ●   CS789L****-63
44.6315-01R CX 1.5 15° 0.1 0.1 8.5 ● ●   CS789L****-63
44.6320-00R CX 2.0 15° 0.0 0.0 8.5 ● ●   CS789L****-63
44.6320-005R CX 2.0 15° 0.05 0.05 8.5 ● ●   CS789L****-63
44.6320-01R CX 2.0 15° 0.1 0.1 8.5 ● ●   CS789L****-63
44.6325-00R CX 2.5 15° 0.0 0.0 8.5 ● ●   CS789L****-63
44.6325-005R CX 2.5 15° 0.05 0.05 8.5 ● ●   CS789L****-63
44.6325-01R CX 2.5 15° 0.1 0.1 8.5 ● ●   CS789L****-63
44.8315-00R CX 1.5 15° 0.0 0.0 8.5 ● ●   CS668L****-83
44.8315-005R CX 1.5 15° 0.05 0.05 8.5 ● ●   CS668L****-83
44.8315-01R CX 1.5 15° 0.1 0.1 8.5 ● ●   CS668L****-83
44.8320-00R CX 2.0 15° 0.0 0.0 10.5 ● ●   CS668L****-83
44.8320-005R CX 2.0 15° 0.05 0.05 10.5 ● ●   CS668L****-83
44.8320-01R CX 2.0 15° 0.1 0.1 10.5 ● ●   CS668L****-83
44.8325-00R CX 2.5 15° 0.0 0.0 10.5 ● ●   CS668L****-83
44.8325-005R CX 2.5 15° 0.05 0.05 10.5 ● ●   CS668L****-83
44.8325-01R CX 2.5 15° 0.1 0.1 10.5 ● ●   CS668L****-83
44.8330-00R CX 3.0 15° 0.0 0.0 10.5 ● ●   CS668L****-83
44.8330-005R CX 3.0 15° 0.05 0.05 10.5 ● ●   CS668L****-83
44.8330-01R CX 3.0 15° 0.1 0.1 10.5 ● ●   CS668L****-83
44.6320-00R CX 2.0 20° 0.1 0.0 8.5 ● ● ● CS789L****-63
44.6320-005R CX 2.0 20° 0.05 0.05 8.5       CS789L****-63
44.6320-01R WCX 2.0 20° 0.1 0.1 8.5       CS789L****-63
44.8320-00R WCX 2.0 20° 0.1 0.0 10.5 ● ● ● CS668L****-83
44.8320-005R WCX 2.0 20° 0.05 0.05 10.5       CS668L****-83
44.8320-01R WCX 2.0 20° 0.1 0.1 10.5       CS668L****-83

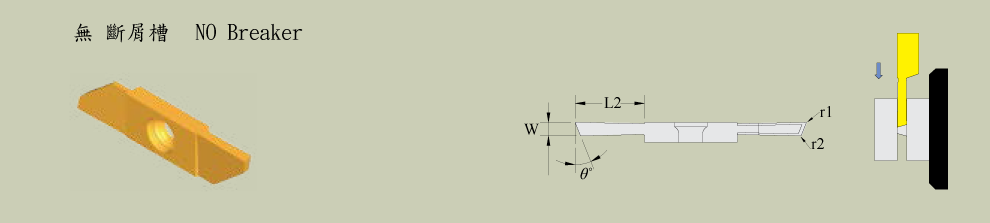

型 號 EDP NO. W θْ r1 r2 L2 X21 NC02 HC83 適用刀架 HOLDER NO.
無"●"標示者為訂製品。Without "●" marking means custom products.
有"●"標示者為在庫品。With "●" marking means items in stock.

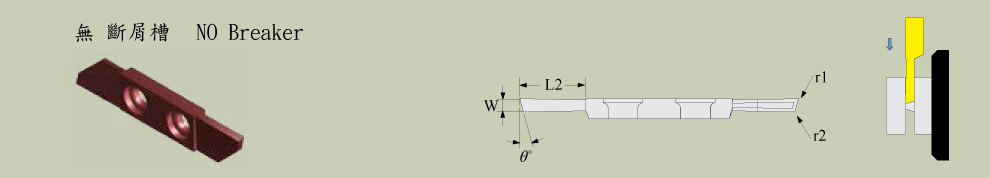

44.6310-00R NB 1.0 15° 0.0 0.0 5 ● ●   CS789L****-63
44.6315-00R NB 1.5 15° 0.0 0.0 8.5 ● ●   CS789L****-63
44.6315-005R NB 1.5 15° 0.05 0.05 8.5 ● ●   CS789L****-63
44.6315-01R NB 1.5 15° 0.1 0.1 8.5 ● ●   CS789L****-63
44.6320-00R NB 2.0 15° 0.0 0.0 8.5 ● ●   CS789L****-63
44.6320-005R NB 2.0 15° 0.05 0.05 8.5 ● ●   CS789L****-63
44.6320-01R NB 2.0 15° 0.1 0.1 8.5 ● ●   CS789L****-63
44.6325-00R NB 2.5 15° 0.0 0.0 8.5 ● ●   CS789L****-63
44.6325-005R NB 2.5 15° 0.05 0.05 8.5 ● ●   CS789L****-63
44.6325-01R NB 2.5 15° 0.1 0.1 8.5 ● ●   CS789L****-63
44.8315-00 NB 1.5 15° 0.0 0.0 8.5 ● ●   CS668L****-83
44.8315-005R NB 1.5 15° 0.05 0.05 8.5 ● ●   CS668L****-83
44.8315-01R NB 1.5 15° 0.1 0.1 8.5 ● ●   CS668L****-83
44.8320-00R NB 2.0 15° 0.0 0.0 10.5 ● ●   CS668L****-83
44.8320-005R NB 2.0 15° 0.05 0.05 10.5 ● ●   CS668L****-83
44.8320-01R NB 2.0 15° 0.1 0.1 10.5 ● ●   CS668L****-83
44.8325-00R NB 2.5 15° 0.0 0.0 10.5 ● ●   CS668L****-83
44.8325-005R NB 2.5 15° 0.05 0.05 10.5 ● ●   CS668L****-83
44.8325-01R NB 2.5 15° 0.1 0.1 10.5 ● ●   CS668L****-83
44.8330-00R NB 3.0 15° 0.0 0.0 10.5 ● ●   CS668L****-83
44.8330-005R NB 3.0 15° 0.05 0.05 10.5 ● ●   CS668L****-83
44.8330-01R NB 3.0 15° 0.1 0.1 10.5 ● ●   CS668L****-83
44.6320-00R WNB 2.0 20° 0.1 0.0 8.5 ● ● ● CS789L****-63
44.6320-005R WNB 2.0 20° 0.05 0.05 8.5       CS789L****-63
44.6320-01R WNB 2.0 20° 0.1 0.1 8.5       CS789L****-63
44.8320-00R WNB 2.0 20° 0.1 0.0 10.5 ● ● ● CS668L****-83
44.8320-005R WNB 2.0 20° 0.05 0.05 10.5       CS668L****-83
44.8320-01R WNB 2.0 20° 0.1 0.1 10.5       CS668L****-83

型 號 EDP NO. W θْ r1 r2 L2 X21 UP60 適用刀架 HOLDER NO.
無"●"標示者為訂製品。Without "●" marking means custom products.
有"●"標示者為在庫品。With "●" marking means items in stock.

44.2515-00R CE 1.5 15° 0.0 0.0 8.5 ● ● CS458L****
44.2515-01R CE 1.5 15° 0.1 0.1 8.5 ● ● CS458L****
44.2520-00R CE 2.0 15° 0.0 0.0 12 ● ● CS458L****
44.2520-005R CE 2.0 15° 0.05 0.05 12 ● ● CS458L****
44.2520-01R CE 2.0 15° 0.1 0.1 12 ● ● CS458L****
44.2525-00R CE 2.5 15° 0.0 0.0 14 ● ● CS458L****
44.2525-005R CE 2.5 15° 0.05 0.05 14 ● ● CS458L****
44.2525-01R CE 2.5 15° 0.1 0.1 14 ● ● CS458L****
44.2530-00R CE 3.0 15° 0.0 0.0 14 ● ● CS458L****
44.2530-005R CE 3.0 15° 0.05 0.05 14 ● ● CS458L****
44.2530-01R CE 3.0 15° 0.1 0.1 14 ● ● CS458L****
44.2515-00R WCE 1.5 20° 0.0 0.0 8.5 ● ● CS458L****
44.2515-01R WCE 1.5 20° 0.1 0.1 8.5 ● ● CS458L****
44.2520-00R WCE 2.0 20° 0.0 0.0 12 ● ● CS458L****
44.2520-005R WCE 2.0 20° 0.05 0.05 12 ● ● CS458L****
44.2520-01R WCE 2.0 20° 0.1 0.1 12 ● ● CS458L****
44.2525-00R WCE 2.5 20° 0.0 0.0 14 ● ● CS458L****
44.2525-005R WCE 2.5 20° 0.05 0.05 14 ● ● CS458L****
44.2525-01R WCE 2.5 20° 0.1 0.1 14 ● ● CS458L****
44.2530-00R WCE 3.0 20° 0.0 0.0 14 ● ● CS458L****
44.2530-005R WCE 3.0 20° 0.05 0.05 14 ● ● CS458L****
44.2530-01R WCE 3.0 20° 0.1 0.1 14 ● ● CS458L****

型 號 EDP NO. W θْ r1 r2 L2 X21 UP60 HC83 適用刀架 HOLDER NO.
無"●"標示者為訂製品。Without "●" marking means custom products.
有"●"標示者為在庫品。With "●" marking means items in stock.

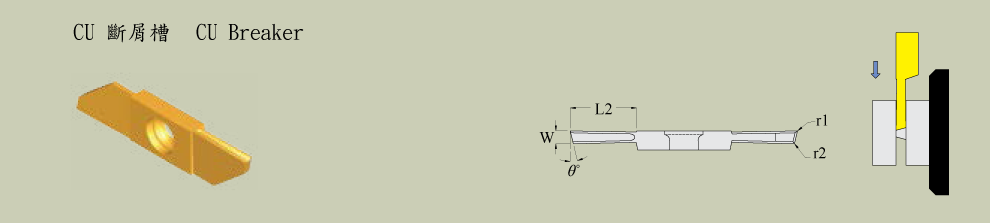

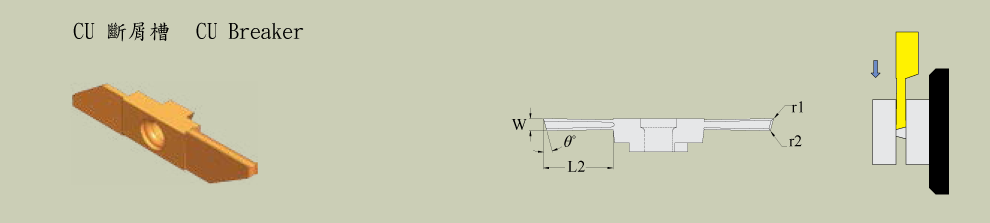

44.2515-00R CU 1.5 15° 0.0 0.0 8.5 ● ●   CS458L****
44.2515-01R CU 1.5 15° 0.1 0.1 8.5 ● ●   CS458L****
44.2520-00R CU 2.0 15° 0.0 0.0 12 ● ●   CS458L****
44.2520-005R CU 2.0 15° 0.05 0.05 12 ● ●   CS458L****
44.2520-01R CU 2.0 15° 0.1 0.1 12 ● ●   CS458L****
44.2525-00R CU 2.5 15° 0.0 0.0 14 ● ●   CS458L****
44.2525-005R CU 2.5 15° 0.05 0.05 14 ● ●   CS458L****
44.2525-01R CU 2.5 15° 0.1 0.1 14 ● ●   CS458L****
44.2530-00R CU 3.0 15° 0.0 0.0 14 ● ●   CS458L****
44.2530-005R CU 3.0 15° 0.05 0.05 14 ● ●   CS458L****
44.2530-01R CU 3.0 15° 0.1 0.1 14 ● ●   CS458L****
44.2515-00R WCU 1.5 20° 0.0 0.0 8.5 ● ●   CS458L****
44.2515-01R WCU 1.5 20° 0.1 0.1 8.5 ● ●   CS458L****
44.2520-00R WCU 2.0 20° 0.0 0.0 12 ● ●   CS458L****
44.2520-005R WCU 2.0 20° 0.05 0.05 12 ● ●   CS458L****
44.2520-01R WCU 2.0 20° 0.1 0.1 12 ● ●   CS458L****
44.2525-00R WCU 2.5 20° 0.0 0.0 14 ● ●   CS458L****
44.2525-005R WCU 2.5 20° 0.05 0.05 14 ● ●   CS458L****
44.2525-01R WCU 2.5 20° 0.1 0.1 14 ● ●   CS458L****
44.2530-00R WCU 3.0 20° 0.0 0.0 14 ● ●   CS458L****
44.2530-005R WCU 3.0 20° 0.05 0.05 14 ● ●   CS458L****
44.2530-01R WCU 3.0 20° 0.1 0.1 14 ● ●   CS458L****

型 號 EDP NO. W θْ r1 r2 L2 X21 UP60 適用刀架 HOLDER NO.
無"●"標示者為訂製品。Without "●" marking means custom products.
有"●"標示者為在庫品。With "●" marking means items in stock.

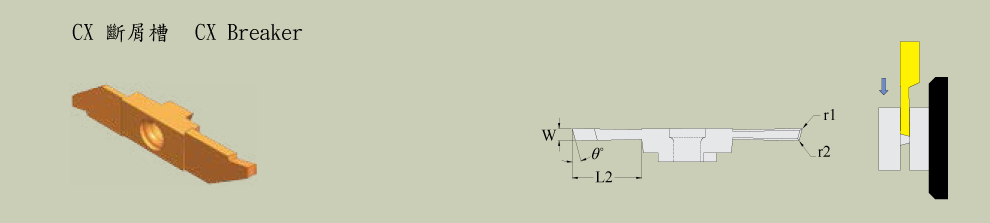

44.2515-00R CX 1.5 15° 0.0 0.0 8.5 ● ● CS458L****
44.2515-01R CX 1.5 15° 0.1 0.1 8.5 ● ● CS458L****
44.2520-00R CX 2.0 15° 0.0 0.0 12 ● ● CS458L****
44.2520-005R CX 2.0 15° 0.05 0.05 12 ● ● CS458L****
44.2520-01R CX 2.0 15° 0.1 0.1 12 ● ● CS458L****
44.2525-00R CX 2.5 15° 0.0 0.0 14 ● ● CS458L****
44.2525-005R CX 2.5 15° 0.05 0.05 14 ● ● CS458L****
44.2525-01R CX 2.5 15° 0.1 0.1 14 ● ● CS458L****
44.2530-00R CX 3.0 15° 0.0 0.0 14 ● ● CS458L****
44.2530-005R CX 3.0 15° 0.05 0.05 14 ● ● CS458L****
44.2530-01R CX 3.0 15° 0.1 0.1 14 ● ● CS458L****
44.2515-00R WCX 1.5 20° 0.0 0.0 8.5 ● ● CS458L****
44.2515-01R WCX 1.5 20° 0.1 0.1 8.5 ● ● CS458L****
44.2520-00R WCX 2.0 20° 0.0 0.0 12 ● ● CS458L****
44.2520-005R WCX 2.0 20° 0.05 0.05 12 ● ● CS458L****
44.2520-01R WCX 2.0 20° 0.1 0.1 12 ● ● CS458L****
44.2525-00R WCX 2.5 20° 0.0 0.0 14 ● ● CS458L****
44.2525-005R WCX 2.5 20° 0.05 0.05 14 ● ● CS458L****
44.2525-01R WCX 2.5 20° 0.1 0.1 14 ● ● CS458L****
44.2530-00R WCX 3.0 20° 0.0 0.0 14 ● ● CS458L****
44.2530-005R WCX 3.0 20° 0.05 0.05 14 ● ● CS458L****
44.2530-01R WCX 3.0 20° 0.1 0.1 14 ● ● CS458L****

型 號 EDP NO. W θْ r1 r2 L2 X21 UP60 適用刀架 HOLDER NO.
無"●"標示者為訂製品。Without "●" marking means custom products.
有"●"標示者為在庫品。With "●" marking means items in stock.

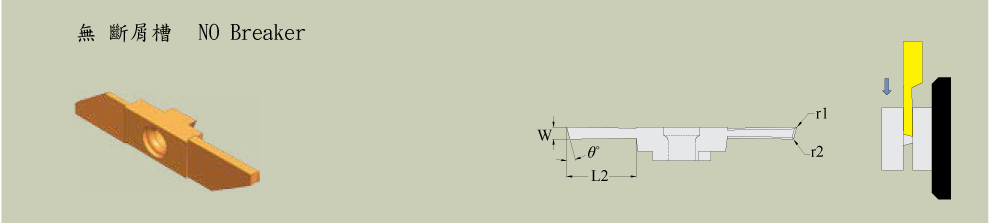

44.2515-00R NB 1.5 15° 0.0 0.0 8.5 ● ● CS458L****
44.2515-01R NB 1.5 15° 0.1 0.1 8.5 ● ● CS458L****
44.2520-00R NB 2.0 15° 0.0 0.0 12 ● ● CS458L****
44.2520-005R NB 2.0 15° 0.05 0.05 12 ● ● CS458L****
44.2520-01R NB 2.0 15° 0.1 0.1 12 ● ● CS458L****
44.2525-00R NB 2.5 15° 0.0 0.0 14 ● ● CS458L****
44.2525-005R NB 2.5 15° 0.05 0.05 14 ● ● CS458L****
44.2525-01R NB 2.5 15° 0.1 0.1 14 ● ● CS458L****
44.2530-00R NB 3.0 15° 0.0 0.0 14 ● ● CS458L****
44.2530-005R NB 3.0 15° 0.05 0.05 14 ● ● CS458L****
44.2530-01R NB 3.0 15° 0.1 0.1 14 ● ● CS458L****
44.2515-00R WNB 1.5 20° 0.0 0.0 8.5 ● ● CS458L****
44.2515-01R WNB 1.5 20° 0.1 0.1 8.5 ● ● CS458L****
44.2520-00R WNB 2.0 20° 0.0 0.0 12 ● ● CS458L****
44.2520-005R WNB 2.0 20° 0.05 0.05 12 ● ● CS458L****
44.2520-01R WNB 2.0 20° 0.1 0.1 12 ● ● CS458L****
44.2525-00R WNB 2.5 20° 0.0 0.0 14 ● ● CS458L****
44.2525-005R WNB 2.5 20° 0.05 0.05 14 ● ● CS458L****
44.2525-01R WNB 2.5 20° 0.1 0.1 14 ● ● CS458L****
44.2530-00R WNB 3.0 20° 0.0 0.0 14 ● ● CS458L****
44.2530-00R5 WNB 3.0 20° 0.05 0.05 14 ● ● CS458L****
44.2530-01R WNB 3.0 20° 0.1 0.1 14 ● ● CS458L****

型 號 EDP NO. W θْ r1 r2 L2 X21 NA01 HC83 適用刀架 HOLDER NO.

443.10-00R CE 1.0 15° 0.0 0.0 5 ● ●   CS900L****83
443.15-00R CE 1.5 15° 0.0 0.0 8.5 ● ●   CS900L****83
443.15-005R CE 1.5 15° 0.05 0.05 8.5 ● ●   CS900L****83
443.15-01R CE 1.5 15° 0.1 0.1 8.5 ● ●   CS900L****83
443.20-00R CE 2.0 15° 0.0 0.0 11.5 ● ●   CS900L****83
443.20-005R CE 2.0 15° 0.05 0.05 11.5 ● ●   CS900L****83
443.20-01R CE 2.0 15° 0.1 0.1 11.5 ● ●   CS900L****83
443.25-00R CE 2.5 15° 0.0 0.0 11.5 ● ●   CS900L****83
443.25-005R CE 2.5 15° 0.05 0.05 11.5 ● ●   CS900L****83
443.25-01R CE 2.5 15° 0.1 0.1 11.5 ● ●   CS900L****83
443.30-00R CE 3.0 15° 0.0 0.0 11.5 ● ●   CS900L****83
443.30-005R CE 3.0 15° 0.05 0.05 11.5 ● ●   CS900L****83
443.30-01R CE 3.0 15° 0.1 0.1 11.5 ● ●   CS900L****83
443.20-00R WCE 2.0 20° 0.1 0.0 11.5 ● ●   CS900L****83
443.20-005R WCE 2.0 20° 0.05 0.05 11.5       CS900L****83
443.20-01R WCE 2.0 20° 0.1 0.1 11.5       CS900L****83





型 號 EDP NO. W θْ r1 r2 L2 X21 NA01 HC83 適用刀架 HOLDER NO.
無"●"標示者為訂製品。Without "●" marking means custom products.
有"●"標示者為在庫品。With "●" marking means items in stock.

443.15-00R CU 1.5 15° 0.0 0.0 8.5 ● ●   CS900L****83
443.15-005R CU 1.5 15° 0.05 0.05 8.5 ● ●   CS900L****83
443.15-01R CU 1.5 15° 0.1 0.1 8.5 ● ●   CS900L****83
443.20-00R CU 2.0 15° 0.0 0.0 11.5 ● ●   CS900L****83
443.20-005R CU 2.0 15° 0.05 0.05 11.5 ● ●   CS900L****83
443.20-01R CU 2.0 15° 0.1 0.1 11.5 ● ●   CS900L****83
443.25-00R CU 2.5 15° 0.0 0.0 11.5 ● ●   CS900L****83
443.25-005R CU 2.5 15° 0.05 0.05 11.5 ● ●   CS900L****83
443.25-01R CU 2.5 15° 0.1 0.1 11.5 ● ●   CS900L****83
443.30-00R CU 3.0 15° 0.0 0.0 11.5 ● ●   CS900L****83
443.30-005R CU 3.0 15° 0.05 0.05 11.5 ● ●   CS900L****83
443.30-01R CU 3.0 15° 0.1 0.1 11.5 ● ●   CS900L****83
443.20-00R WCU 2.0 20° 0.1 0.0 11.5 ● ●   CS900L****83
443.20-005R WCU 2.0 20° 0.05 0.05 11.5       CS900L****83
443.20-01R WCU 2.0 20° 0.1 0.1 11.5       CS900L****83

型 號 EDP NO. W θْ r1 r2 L2 X21 NA01 HC83 適用刀架 HOLDER NO.

443.10-00R CX 1.0 15° 0.0 0.0 5 ● ●   CS900L****83
443.15-00R CX 1.5 15° 0.0 0.0 8.5 ● ●   CS900L****83
443.15-005R CX 1.5 15° 0.05 0.05 8.5 ● ●   CS900L****83
443.15-01R CX 1.5 15° 0.1 0.1 8.5 ● ●   CS900L****83
443.20-00R CX 2.0 15° 0.0 0.0 11.5 ● ●   CS900L****83
443.20-005R CX 2.0 15° 0.05 0.05 11.5 ● ●   CS900L****83
443.20-01R CX 2.0 15° 0.1 0.1 11.5 ● ●   CS900L****83
443.25-00R CX 2.5 15° 0.0 0.0 11.5 ● ●   CS900L****83
443.25-005R CX 2.5 15° 0.05 0.05 11.5 ● ●   CS900L****83
443.25-01R CX 2.5 15° 0.1 0.1 11.5 ● ●   CS900L****83
443.30-00R CX 3.0 15° 0.0 0.0 11.5 ● ●   CS900L****83
443.30-005R CX 3.0 15° 0.05 0.05 11.5 ● ●   CS900L****83
443.30-01R CX 3.0 15° 0.1 0.1 11.5 ● ●   CS900L****83
443.20-00R WCX 2.0 20° 0.1 0.0 11.5 ● ●   CS900L****83
443.20-005R WCX 2.0 20° 0.05 0.05 11.5       CS900L****83
443.20-01R WCX 2.0 20° 0.1 0.1 11.5       CS900L****83





型 號 EDP NO. W θْ r1 r2 L2 X21 NA01 HC83 適用刀架 HOLDER NO.
無"●"標示者為訂製品。Without "●" marking means custom products.
有"●"標示者為在庫品。With "●" marking means items in stock.

443.10-00R NB 1.0 15° 0.0 0.0 5.0 ● ●   CS900L****83
443.15-00R NB 1.5 15° 0.0 0.0 8.5 ● ●   CS900L****83
443.15-005R NB 1.5 15° 0.05 0.05 8.5 ● ●   CS900L****83
443.15-01R NB 1.5 15° 0.1 0.1 8.5 ● ●   CS900L****83
443.20-00R NB 2.0 15° 0.0 0.0 11.5 ● ●   CS900L****83
443.20-005R NB 2.0 15° 0.05 0.05 11.5 ● ●   CS900L****83
443.20-01R NB 2.0 15° 0.1 0.1 11.5 ● ●   CS900L****83
443.25-00R NB 2.5 15° 0.0 0.0 11.5 ● ●   CS900L****83
443.25-005R NB 2.5 15° 0.05 0.05 11.5 ● ●   CS900L****83
443.25-01R NB 2.5 15° 0.1 0.1 11.5 ● ●   CS900L****83
443.30-00R NB 3.0 15° 0.0 0.0 11.5 ● ●   CS900L****83
443.30-005R NB 3.0 15° 0.05 0.05 11.5 ● ●   CS900L****83
443.30-01R NB 3.0 15° 0.1 0.1 11.5 ● ●   CS900L****83
443.20-00R WNB 2.0 20° 0.1 0.0 11.5 ● ●   CS900L****83
443.20-005R WNB 2.0 20° 0.05 0.05 11.5       CS900L****83
443.20-01R WNB 2.0 20° 0.1 0.1 11.5       CS900L****83

Relate Products

Stay in touch

Newsletter Signup

HOLER CUTTING TOOL (Office)

939, Chung Ming South Road,

South District, Taichung, Taiwan

Tel: +886-4-2260 9379

Fax: +886-4-2263 5858

holer@hol-drill.com.tw

HOLER CUTTING TOOL (Factory)

No.112-26, Qingguang Rd.,

Wuji District, Taichung 414, Taiwan

Tel: +886-4-2335 2345

Fax: +886-4-2335 2255

holer@hol-drill.com.tw

Our Products

Brochures
